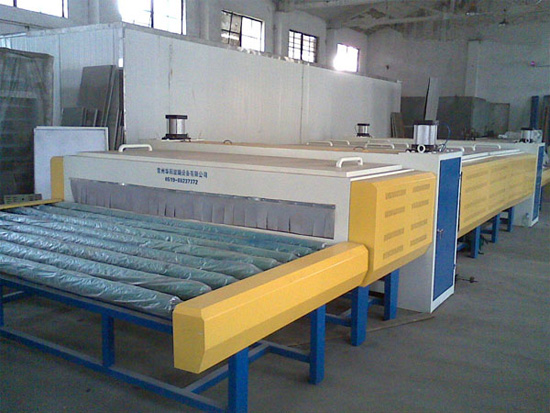

Pre-Pressing And Heating Machine

PRY-2600 Flat machine technical parameters

1. flat sandwich initial pressure machine (preheating prepress) used for continuous rolled plate sandwich glass and multi-layer combination bulletproof glass initial bonding the equipment is used for continuous production plate sandwich glass and multi-layer combination bulletproof glass initial bonding
2. equipment adopt foreign advanced technology structure, drive big rubber roller outside, all bevel gear transmission
3. electrical material use imported or joint venture company of brand-name products
4. use high-temperature aging quality rubber production roll up and down all piece for vulcanized rubber roll
5. transmission adopts frequency conversion motor stepless speed regulating temperature control can be set in a random manner
6. roller ends pressure using phi 160 double cylinder according to the thickness of the glass area, pressure from 0-0.6 Mpa adjustable voltage
7. before and after two roller between the clearance can be adjusted separately set and display
8. heating period of 5.4 meters long, points high and low temperature independent 3 district heating      Heating pipe using quartz glass tube infrared heating, direct heating PVB film, high efficiency and energy saving。
9. table 60 mm seamless steel tube (wall thickness 5 mm) and around the braided rope
10. running speed regulation for frequency control of motor speed, electric control work station equipped with linear velocity digital display table shows the running speed per minute
11. the Lord transfer (table) gear transmission
12. thermal insulation layer thickness 100 mm (for the similar product two times thick
13. preheating section and silicone rubber plate door curtain, as drying tunnel opening and external insulation between
14. control part:

①Speed stepless speed regulation
②Compressed air pressure 0 ~ 6 kg adjustable
③Roll gap 0 ~ 50 mm adjustable。
④Heating temperature 0 ~ 250 degrees adjustment setting
⑤Bonding glass thickness: 4 mm to 50 mm

16. Bonding glass maximum specification: width 2500 mm (unlimited length) special specifications can be customized
17. Production capacity: the maximum size 2440 x (5 clamp 5) 120 m2 / h
18. Installed power: 120 kw
19. Average use power: 40-55 kw
20. Voltage: 380 v frequency: 50 hz
21. The supplier is responsible for equipment installation commissioning and out of accord with preloading requirements of the product
22. The buyer arrange assistance personnel, and equipped with mechanical mechanic electric equipment operators, follow the supplier installation and debugging, in order to impart operation technology


Flat and bent technical parameters

23. If you need flat and bent in the basis of the original price increase 30000 yuan (materials) screw integral lifting oven
Bonding glass maximum specification: width 2500 mm (unlimited length) special specifications can be customized
Production capacity: the maximum size 2500 * (5 + 5) 120 square meters/hour
Installed power: 125 kw
Average use power 40 ~ 55 kw
Working temperature: 160 degrees to 180 degrees
Equipment general: 11 meters (than similar products is long, appearance is not the same
Total width: 3.2 m
Total high: 1.65 meters
Voltage: 380 v frequency: 50 hz
Companies can customize according to the requirements of customers, various types of glass preheating preloading machine, glass deep processing equipment.
