Water curtain spray booth

1. Spray paint room is to use water screen plate and the effect of spray complete filter paint mist, the purification of exhaust gas effect. Work, including paint fog in the air of the fan under the action of gravity, the overflow tank outflow of water, formation water screen and pool water in water ahead, paint fog encounter water screen or pool surface will be wateradsorption, stored up in a tank. Not hit drencher paint fog by water screen lower into the spray room back, by spray ejective spray washing,

secondary collect paint fog. Paint mist and water mist together in dehydration indoor round collision and form including paint fog droplets. Fall into the bottom of the sink dehydration room to save product, the separated by the fan exhaust air outdoor.

2. Chamber body are made of galvanized steel or cold rolled steel plate assembly structure, aesthetically pleasing.
3. Basin is located in the lower Chambers, the steel and 3 ㎜ plates welded together. Distributed in a sink into, drain valve

and pump pipe, water pump import and equipped with stainless steel filter.
4. Smoke emission system consists of centrifugal fan, exhaust pipe, etc, which will be after treatment, paint fog emission outdoor, exhaust duct use 1.0 t galvanized sheet production.
5. For can assure indoor have certain brightness, equipped with two sets of isolation type solar lighting sets.

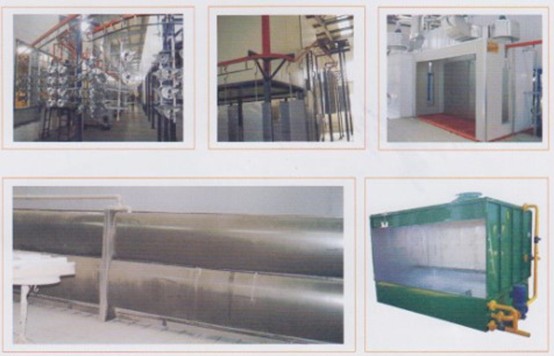

Entity engineering
