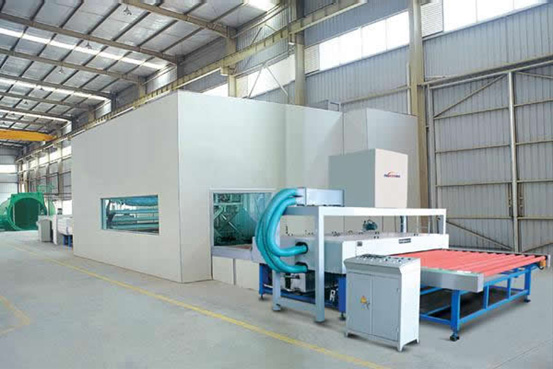

Flat Laminating Line

Flat Laminating Line equipment list:

Optional parts(or User auxiliary equipment）

Note: For detailed quotation of your requested specification,please contact me.
BQX2600 Glass washing machine technical parameters

1. 1、It can be used for washing the flat glass,whose thickness ranges from 3~20mm & max width of 2440mm(Unlimited length)
   The minimum specification is 400x400mm.
2. 2、The upper press roller,the upper wash roller and the Weather knife can be hoisted or declined by motor,max hoisting height is 400mm. 400mm（Facilitate maintenance or repair）

3. 3、The hoisting and declining distance can be set according to the thickness of the glass,meanwhile displaying the distance the result of gap size.

4. 4、The part of the machine where access to the water will be produced by stainless steel materials.
5. 5、The fan machine is installed under the 15kw high pressure fan to reduce the occupied area and dust pollution.

6. 6、The inlet hose use air filter apparatus, Fan housing upset sound absorbing material，Make sure the noise is belower than 80 db.

7. 7、The wind pressure and air volume can be dried when the line speed is over 6m/min.

8. 8、Each water tank has an independent water pump.Each water tank has one pump itself and has automatic water device and wheels,so that can put out to wash easily. With the fast water pipe connector, users can change water and disassemble the water pipe.

9. 9、In the clean the tablet is equipped with stainless steel holder water pond，Preventing water regurgitation.

10. 10、Brush roller driving parts is drived by belt. And the belt driving parts are  independently upper and down.

11. 11、Brush roller is integrated designed.It can be assembled and unassembled easily as well as repairing and changing parts.

12. 12、Each root pressure roller drive for quenching metal bevel gear transmission, drive stability without the noise.

13. 14、Operating speed using frequency control of motor speed and display speed per minute

14. 15、Electrical material are famous brand in China or a sino-foreign joint venture enterprise products

15. 16、Production capacity: linear velocity in 6 m/min 200 square meters/hour

16. 17、External dimensions: long, 6.5 meters wide and 3.2 meters high 2.5 meters


PRY-2600 concora crush machine technical parameter

1、Flat sandwich initial pressure machine（Preheating prepress）Used for continuous rolled plate sandwich glass and multi-layer combination bulletproof glass initial bonding
2、The equipment adopt foreign advanced technology structure, drive big rubber roller outside, all bevel gear transmission
3、Electrical material use imported or joint venture company of brand-name products
4、Use high-temperature aging quality rubber production roll up and down all piece for vulcanized rubber roll
5、Transmission adopts frequency conversion motor stepless speed regulating temperature control can be set in a random manner
6、Roller pressure on both ends of the phi 160 double cylinder according to the thickness of the glass area, pressure from 0-0.6 Mpa adjustable voltage
7、Before and after two roll gap between can be separately adjustment setting and display
8、Heating period of 5.4 meters long, points high and low temperature independent 3 district heating
      Heating pipe using quartz glass tube infrared heating, direct heating PVB film, high efficiency and energy saving
9、Table 60 mm seamless steel tube (wall thickness 5 mm) and around the braided rope
10、Running speed regulation for frequency control of motor speed, electric control work station equipped with linear velocity digital display table shows the running speed per minute
11、Main transmission (table) gear transmission
12、Thermal insulation layer thickness 100 mm (for the similar product two times thick
13、Preheating section and silicone rubber plate door curtain, as drying tunnel opening and external insulation between
14、Control part is：
①Speed stepless speed regulation
②Compressed air pressure 0 ~ 6 kg adjustable
③Roll gap 0 ~ 50 mm adjustable
④Heating temperature 0 ~ 250 degrees adjustment setting
⑤Bonding glass thickness: 4 mm to 50 mm
16、Bonding glass maximum specification: width 2500 mm (unlimited length) special specifications can be customized
17、Production capacity: the maximum size 2440 x (5 clamp 5) 120 m2 / h
18、Installed power: 120 kw
19、Average use power: 40-55 kw
20、Voltage: 380 v frequency: 50 hz
21、The supplier is responsible for equipment installation commissioning and out of accord with preloading requirements of the product
22、The buyer arrange assistance personnel, and equipped with mechanical mechanic electric equipment operators, follow the supplier installation and debugging, in order to impart operation technology
Flat and bent technical parameters
23、If you need flat and bent in the basis of the original price increase 26000 yuan (materials) screw integral lifting oven
24、


Glass autoclave technical parameters

（Ⅰ）Main Pro Technical Parameter


（Ⅱ）Type of construction
The machine heating points areas infrared heating, respectively side left and right sides and bottom, heating mode layout is reasonable. Body material for 16 MnR, kettle insulation used aluminum silicate cotton blanket, thick 80-100 mm, the overall heat preservation effect is very good, prevent heat loss of energy conservation and environmental protection still has good body shunt stainless steel wind deflector, above for stainless steel band punching mesh stainless steel are all made of 304 stainless steel integral design generous beautiful wind deflector inside for cooling system, all cooling tube thickness to 3 mm around winding fin, seamless steel pipe service life is long, safety is not easy to burst body bottom for rectangular stainless steel mesh step, convenient maintenance personnel entering and leaving body external equipped with mechanical thermometer pressure gauge electronic thermometer electronic pressure gauge transducer, bring their own digital display convenient for observation maintenance cooling water import and export in the ellipsoidal head parallel to the ground, and a cooler emptier, prevent cooler.
（Ⅲ）the main technical characteristics
1、kettle door put together and still lock tight for electric, each one pace reachs the designated position have the security Settings, in order to carry on the corresponding operation ensure orderly and safe production
2、kettle heating system, using standard tubular heating element, power set is reasonable, the heating areas
3、cooling system the national standard cooler configuration cooling area is large, with with heater installed in fan on both sides of the air duct inside, compact structure and good cooling effect is equipped with cooler water emptying ring network, prevent fouling
4、electrical control system: to achieve a truly unattended, the program from the beginning to the end for automatic control
A、body production process control: from foreign technology all weld 100% for inspection, to the customer provided in the inspection report inspection report test data provide inspection material, let equipment in smoothly
B、process by PLC control, electrical components are a sino-foreign joint venture enterprise product set parameters automatic operation
C、in temperature booster process, with temperature, pressure and pressure temperature control procedures, to ensure the temperature and pressure set according to process curve synchronous operation in constant temperature constant pressure process, with automatic complement temperature fill pressure control.
D、has double super WenChao pressure alarm, and super WenChao pressure automatic protection, and ensure the safety in production
