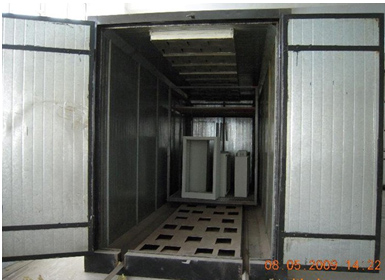

Drying equipment (oven or drying tunnel)

Oven insulation sandwich using silicate cotton or rock cotton filling. The forming mechanism, in order to plate shape assembly molding. Equipment structure closely, solid and durable, good insulation sealing. The equipment warming faster, temperature difference is small, energy saving effect is remarkable. The temperature range, heat preservation time, heating speed, automatic protection can be arbitrary program are set. With simple operation, stable operation. Completely do automatic control, without people watching.

Product features:

♦ Hot air in the cycle, thermal efficiency is high, the temperature in the cabinet is balanced, to save energy.

♦ Use of forced ventilation effect, heat source can use electricity, coal, oil, gas and other choice widely

♦ The noise is small, running balance. Temperature control, easy installation and maintenance

Application:

this equipment can be widely used for various types of products to dry and fixed-line.

Heating mode features:

♦ Electric heating: convenient, equipment cost is low, the use cost is on the high side

♦ Fuel: convenient, equipment cost slightly tall, use cost generally

♦ Coal hot air furnace: easy to use degree general, equipment cost slightly

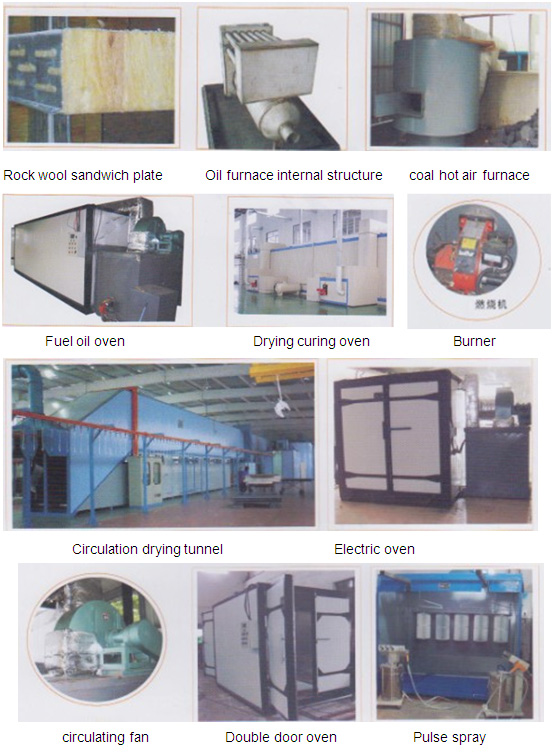

Furnace body structure

1. Furnace inner shell use 1.5 mm cold rolled steel production

2. The wall SPG1.2 mm galvanized sheet production

3. Insulation with 100 k import sith's rock wool, 100 mm thick

4. Internal and external plate built-in type design, the heat transfer of energy to a minimum

5. Furnace body skeleton with 100 x100mm square pass and 80 x80mm Angle with production

6. All the furnace body around 3.0 or 2.0 mm steel edge

7. Furnace import and export the bridge flatly, ensure the minimum energy loss

8. Top department set natural exhaust pipe, to discharge waste gas and added fresh air to create a good fixed-line space

9. Furnace top export with exhaust gas exhaust pipe, the lacquer that bake peculiar smell discharge outside working area

Furnace plate outside coating antirust paint floor, making furnace plate has the good antirust function

Blast pipe and return duct

Material USES 1.0 mm steel, outside the furnace pipe insulation thickness 100 mm

According to the actual size production, ensure that beautiful

Furnace outlet filter set, ensure hot air clean, and matches air valve

Oven technical description:

Process: the roast dry

Energy conversion: air convection way

Voltage: 220 v. 50 hz. 3 φ

Heat isolation: rock cotton 80 kg/M2

Conveyor speed: continuous

Temperature control: PID control

Heat exchange system

Italy "the brand" 400000 Kcal gas machine heating

Combustion chamber with SUS - 304 imported high temperature stainless steel plate production

Combustion machine flame tank to 3 mm - SUS304 imported high temperature stainless steel plate

Air supply with high temperature, low noise windmill cycle air supply

Heat preservation with 100 k import sith's rock wool, 100 mm thick

Curing oven temperature: normal temperature to 220 ℃ adjustable

Description:
when heating air send charging classic painting content endothermic, recovery of air temperature drop, the use of combustion chamber make recovery air again warming, cycle use, save energy.
